Product Summary

The BA3880S is a high-definition sound processor. It can be used in component stereo systems, radio cassette players, car stereo systems, televisions, VCRs, and active speakers.

Parametrics

BA3880S absolute maximum ratings: (1)Power Supply Voltage: 11 V; (2)power dissipation: 1000mW; (3)Operating Temperature:–40 to +85 °C; (4)Storage Temperature:–55 to +125 °C.

Features

BA3880S features: (1)Corrects distortion in the rising section of audio signals that results from miss-matched speakers and amplifiers, and reproduces the original sound faithfully; (2)To allow application with all types of speakers and sources, the clarity can be adjusted using DC control; (3)DC control provided for selection of either processor mode or bypass mode; (4)Bass boost fixed internally to 4dB.

Diagrams

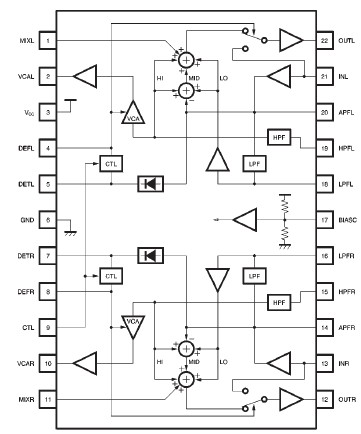

BA3880S block diagram
